项目名称： 同诚伟业 海洋馆照明专用灯

Special lighting lamp for aquarium

申报单位： 天津同诚伟业科技有限公司

综合介绍或申报理由：

提升了大型海水缸观赏效果，优良的防腐防水等级使灯具使用年限大大提升。
The viewing effect of the large sea water tank is improved, and the excellent anti-corrosion and waterproof level greatly increases the service life of the lamp.

主要技术参数：

6000系合金散热器，明纬电源，光效120lm/w，色温12000-20000K，防护等级IP67，输入电压90-305V，支架为316不锈钢材质.
6000 series alloy radiator, MEAN WELL power supply, light efficiency 120lm/w, color temperature 12000-20000K, protection grade IP67, input voltage 90-305V, bracket is made of 316 stainless steel.

与国内外同类产品或同类技术的比较情况：

比较国内外产品具备更好的防腐等级，展示效果大大提升，寿命是同类产品的两倍以上。
Compared with domestic and foreign products, it has a better anti-corrosion grade, the display effect is greatly improved, and the service life is more than twice that of similar products.

经济评价分析：

海洋馆照明历来的痛点就是灯具使用寿命短，我公司的产品在技术层面解决了大部分原来存在的一些为题，大大降低了海洋馆运营单位的运营成本，对比行业其他LED产品节电30-50%，寿命提升一倍以上.
The historical pain point of the aquarium lighting is the short service life of the lamps. Our company’s products solve most of the original problems at the technical level, greatly reducing the operating cost of the aquarium operating unit, and saving 30- of electricity compared with other LED products in the industry. 50%, more than double the life span.

技术及工艺创新要点：

该产品采用本公司专利散热器加高硼硅玻璃透镜组装而成，模块化设计，配件材质均为316不锈钢材质，防腐等级优良，内部光源采用定制COB，行业内率先采用色温区间为12000-20000K，照射海水缸内呈现淡蓝色的效果，提升了大型海水缸观赏效果.
This product is assembled with the companys patented radiator and high borosilicate glass lens, modular design, accessories are made of 316 stainless steel, with excellent anti-corrosion grade, the internal light source adopts customized COB, and the first in the industry to adopt the color temperature range of 12000-20000K , The light blue effect appears in the irradiated sea water tank, which enhances the viewing effect of the large sea water tank.

实际运用案例和用户评价意见：

天津海昌极地海洋公园，深圳小梅沙海洋世界，山海关乐岛海洋公园，温州极地海洋世界等，客户均表示满意.
Tianjin Haichang Polar Ocean Park, Shenzhen Xiaomeisha Ocean World, Shanhaiguan Ledao Ocean Park, Wenzhou Polar Ocean World, etc. All customers are satisfied.

获奖、专利情况：

一种高盐雾地区用投光灯 专利号ZL201920415779.1 一种高盐雾地区灯具用反光器 专利号ZL201920416244.6 散热器 专利号ZL201930595960.0 散热器 专利号ZL201930607496.2 灯具用散热器 专利号ZL201921851607.5

申报单位介绍：

本公司是一家及产品研发制造为一体的小企业，2016年2月成立至今，目前拥有自主知识产权专利6项，主营业务为体育场馆灯，高杆灯，海洋馆照明灯，城市道路路灯。
The company is a small enterprise integrating product development and manufacturing. Since its establishment in February 2016, it currently has 6 independent intellectual property patents. Its main business is stadium lights, high pole lights, aquarium lights, and urban road street lights. .

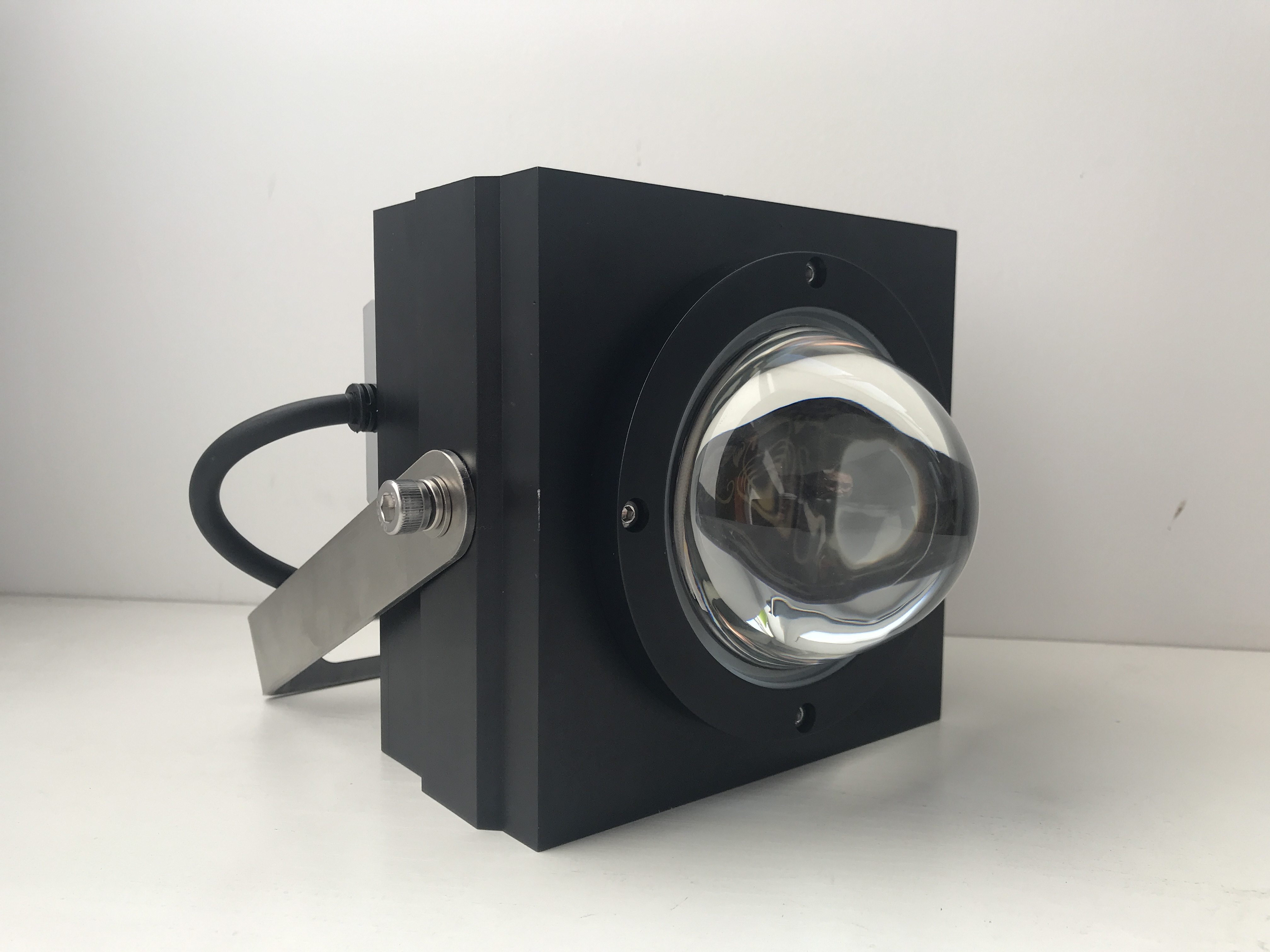

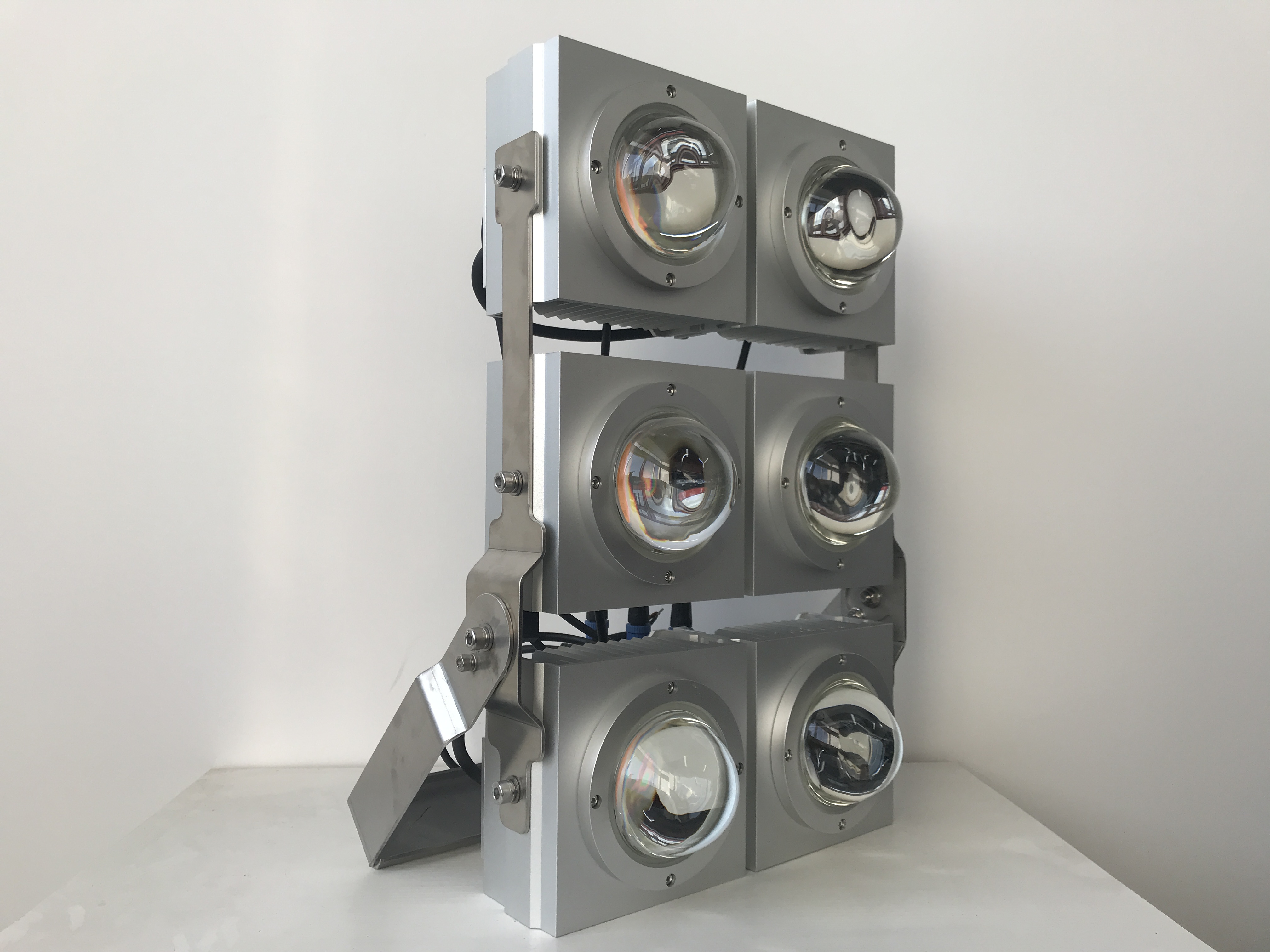

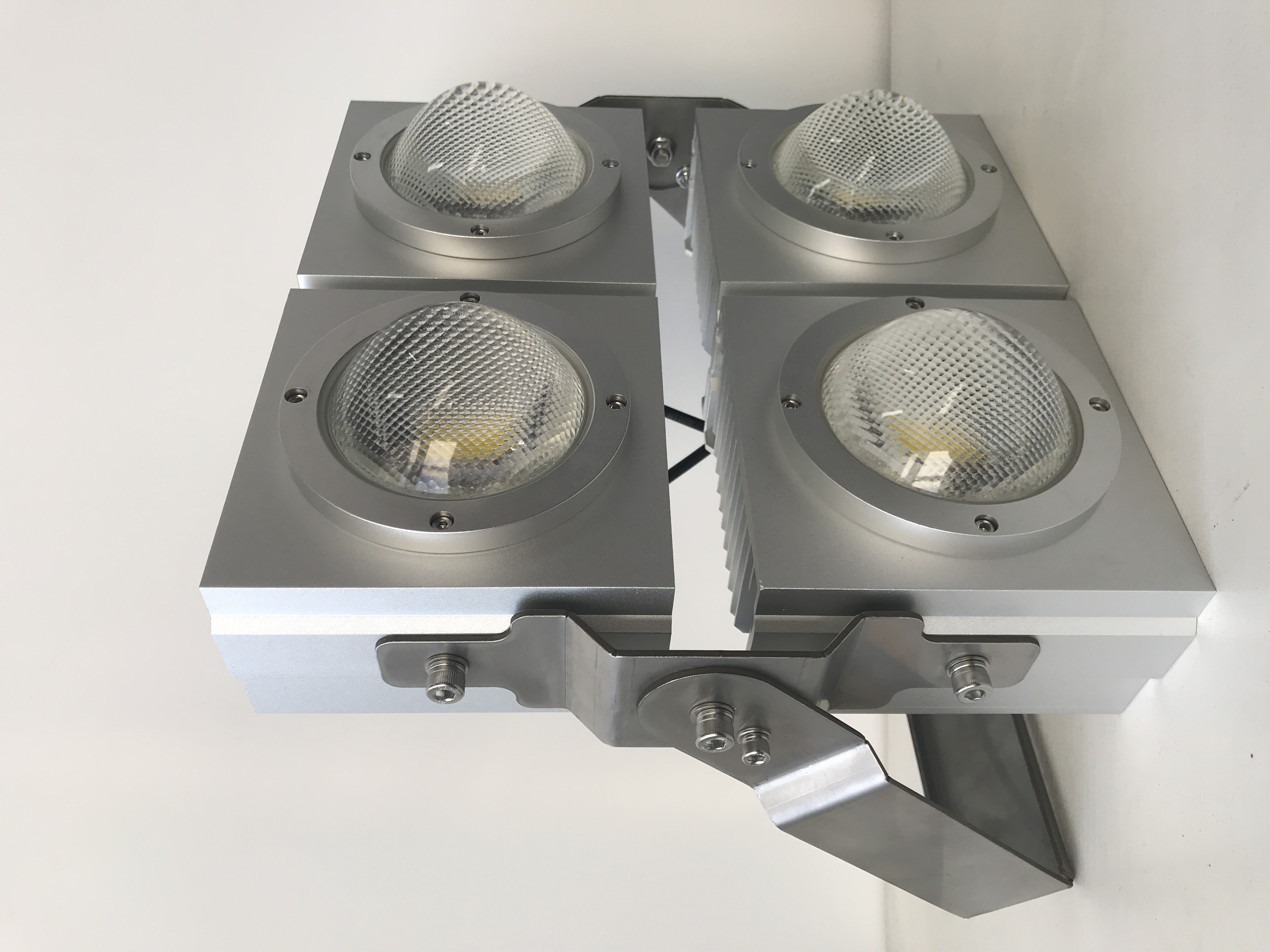

产品图片：
