联机分控系统M-D8——2021神灯奖申报技术

大件事要分享到:
2020-12-18 作者: 来源:深圳市格瑞照明有限公司 浏览量: 网友评论: 0

摘要: 联机分控系统M-D8,为深圳市格瑞照明有限公司2021神灯奖申报技术。


项目名称: 联机分控系统M-D8

Online sub-control system M-D8|

申报单位: 深圳市格瑞照明有限公司

综合介绍或申报理由:

深圳市格瑞照明有限公司是一家致力于LED控制系统的研发、生产及销售的科技型企业。公司主要产品有云控服务系统、联机\脱机控制系统、七彩控制器、调光系统及各类智能控制系统的定制。为全国各地相关产业合作商提供了强有力的技术支持。我们研制的产品已经在户外广告牌、大楼亮化工程、室内装饰照明等各种场合得到了广泛应用。

Shenzhen Gree Lighting Co, LTD is a technology company.We dedicated to LED control system and lighting. Our main products are DMX controller,GPS controller,RGB controller, full color controller,dimmer etc. To provide the development and design services of LED related products for small and medium-size denterprises, providing strong technical support for many enterprises.
We have developed products with good reputation, and our products have been widely used in out door billboards, building lighting projects, indoor decoration lighting and so on.

项目宣传视频: https://b2b.alighting.com/headline/gree2016/videodetail-3641.html

主要技术参数:

额定电压:AC220V
额定功率:15W
长度:283mm
宽度:134mm
高度:45mm
固定孔间距:268mm;68mm
标配附件AC电源线×1其他配件螺丝刀
产品重量1.045Kg

Rated voltage: AC220V
Rated power: 15W
Length: 283mm
Width: 134mm
Height: 45mm
Fixed hole spacing: 268mm; 68mm
Standard accessories AC power cord × 1 other accessories screwdriver
Product weight 1.045Kg

与国内外同类产品或同类技术的比较情况:

1. 四色独立算法:节能环保,色彩纯正;
2. 同异步一体控制:联机优先,无联机信号自动切换脱机效果,实现视频源备份;
3. 使用于国内外各种异型屏、多屏、楼宇屏、像素灯屏等复杂应用;
4. 配合互联网控制软件,支持互联网远程控制;
5. 支持Windows主流32位、64位操作系统: windows 2000、windows 2003、 windows XP、 windows 7、windows 8等。

1. Four-color independent algorithm: energy saving and environmental protection, pure color;
2. Synonous and asynonous integrated control: online priority, no online signal automatically switches offline effects, to achieve video source backup;
3. Used in complex applications such as various special-shaped screens, multi-screens, building screens, and pixel lamp screens at home and abroad;
4. Cooperate with Internet control software to support Internet remote control;
5. Support Windows mainstream 32-bit and 64-bit operating systems: windows 2000, windows 2003, windows XP, windows 7, windows 8, etc.

经济评价分析:

1. 可同、异步播放多种格式的视频和图片文件内容;
2. 播放软件留有充足接口以便和其他国际通用协议兼容,并支持客户个性化设计需求;
3. 支持DMX512AP-N、DMX512AP-NB、UCS512、MY7221、WS2821、SM512-12等驱动芯片。

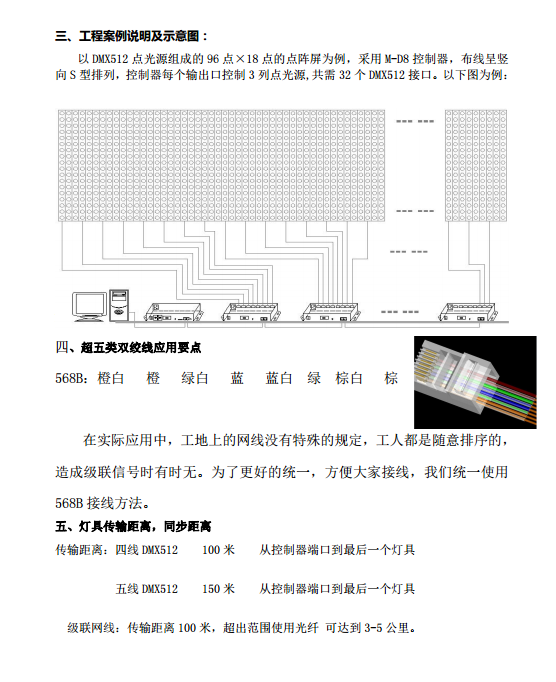

接线方式

1.be played simultaneously and asynonously;
2. The playback software has sufficient interfaces in order to be compatible with other international common protocols and support customers personalized design requirements;
3. Support DMX512AP-N, DMX512AP-NB, UCS512, MY7221, WS2821, SM512-12 and other driver chips.

技术及工艺创新要点:

1. M-D8支持标准USITT DMX512/1990通用协议和扩展DMX512协议;
2. 控制器信号输出ADRI/PO端可实现DMX512通道自动编址;
3. M-D8控制器编址信号输出兼容输出差分信号,提高了编址信号的传输距离,利于项目应用中编址线长距离的传输及有效编址;
4. 三基色独立亮度控制,使精确调整白平衡更加简单有效;
5. 精准伽马矫正算法,更加符合人体视觉感光特性,显示色彩更细腻丰富;
6. 最大支持120换帧频率以保证画面高清显示和3D显示需求;
7. 采用以太网接口和UDP网络协议传输稳定,最大传输距离100米;
8. 双网络接口,可以实现控制器间级联;控制器自动检测,软件直观显示连接状态;
9. 8端口输出,单口输出标准512通道,扩展协议带载点数由客户根据芯片特性自行测试;
10. 支持双路备份,一个控制器坏或者网线断显示不受影响;
11. 千/百兆自适应或者强制百兆可设,保证大点数的项目更稳定。

1. M-D8 supports standard USITT DMX512/1990 general protocol and extended DMX512 protocol;
2. The ADRI/PO terminal of the controller signal output can realize automatic addressing of DMX512 channels;
3. The addressing signal output of the M-D8 controller is compatible with outputting differential signals, which increases the transmission distance of the addressing signal, which is conducive to the long-distance transmission and effective addressing of the addressing line in project applications;
4. Independent brightness control of the three primary colors makes it easier and more effective to adjust the white balance accurately;
5. Accurate gamma correction algorithm, which is more in line with the human visual sensitivity acteristics, and the display colors are more delicate and rich;
6. The maximum support for the frame change frequency of 120 to ensure the screen high-definition display and 3D display requirements;
7. Using Ethernet interface and UDP network protocol for stable transmission, the maximum transmission distance is 100 meters;
8. Double network interface, can realize the cascade connection between controllers; the controller automatically detects, and the software directly displays the connection status;
9. 8-port output, single-port output standard 512 channels, the number of points loaded by the extended protocol is tested by the customer according to the chip acteristics;
10. Supports dual-channel backup, and the display of a broken controller or broken network cable will not be affected;
11. 1000/100M adaptive or mandatory 100M can be set to ensure more stable projects with large points.

实际运用案例和用户评价意见:


申报单位介绍:

深圳市格瑞照明有限公司是一家致力于LED控制系统的研发、生产及销售的科技型企业。公司主要产品有云控服务系统、联机\脱机控制系统、七彩控制器、调光系统及各类智能控制系统的定制。为全国各地相关产业合作商提供了强有力的技术支持。我们研制的产品已经在户外广告牌、大楼亮化工程、室内装饰照明等各种场合得到了广泛应用。

Shenzhen Gree Lighting Co, LTD is a technology company.We dedicated to LED control system and lighting. Our main products are DMX controller,GPS controller,RGB controller, full color controller,dimmer etc. To provide the development and design services of LED related products for small and medium-size denterprises, providing strong technical support for many enterprises.
We have developed products with good reputation, and our products have been widely used in out door billboards, building lighting projects, indoor decoration lighting and so on.

产品图片:
