项目名称： 荣观物联 无线回路控制器

Rongguan IoT Wireless Loop Controller

申报单位： 广东荣观物联科技有限公司

综合介绍或申报理由：

广东荣观物联科技有限公司成立于2017年,是一家物联网和大数据关键技术创新研发的高新技术企业。公司以"简单可信赖，开放求共赢”为宗旨，并始终以帮助政府和企业实现信息化高效管理为已任。公司拥有WEMIND智慧城市基础设施运营管理平台，LAMPMIND智慧照明管理平台， SOLAR STATION新能源电站管理平台，智慧教室照明管理平台，拥有智慧云盒代智慧多功能杆核心网关，拥有智慧云盒二代智慧城市AI边缘计算核心网关。无线产品覆盖5G、4G、GSM、NBIoT，LoraWAN以及BLE MESH等主流无线协议。在智慧城市核心硬件,综合平台，A边缘计算，形成了完整的端到端，硬件+通信+云平台+ AI体化的解决方案，积极推进智慧城市建设共建共享智慧城市生态圈。

Guangdong Rongguan IoT Technology Co., Ltd. was established in 2017. It is a high-tech enterprise engaged in the innovation and development of key technologies for the Internet of Things and big data. The company takes "simple and reliable, open and win-win" as its purpose, and has always been committed to helping the government and enterprises to achieve efficient management of informatization. The company has WEMIND smart city infrastructure operation management platform, LAMPMIND smart lighting management platform, SOLAR STATION new energy power station management platform, smart classroom lighting management platform, smart cloud box generation smart multi-function pole core gateway, and smart cloud box second generation wisdom The core gateway of urban AI edge computing. Wireless products cover mainstream wireless protocols such as 5G, 4G, GSM, NBIoT, LoraWAN and BLE MESH. In smart city core hardware, integrated platform, A-edge computing, a complete end-to-end, hardware + communications + cloud platform + AI integrated solution has been formed, actively promoting the construction of smart cities and building a shared smart city ecosystem.

项目宣传视频： https://b2b.alighting.com/exh/rgwl123456/videodetail-3371.html

主要技术参数：

1.无线回路控制器
通讯模式：本地RS485 控制/网络版GPRS- -2G/3G通讯
功率电压(V) ：230V /400V；3x230V /400V
电流(U) ： 20A；20A
最大电流(U)：63A ； 80A
工作频率：50/60Hz
保护功能：短路，过载， 过欠压，缺相，自动报警，远程控制
工作温度:：25° C+65° C/-40° C+75° C

1. Wireless loop controller
Communication mode: local RS485 control/network version GPRS- -2G/3G communication
Power voltage (V): 230V /400V; 3x230V /400V
Current (U): 20A; 20A
Maximum current (U): 63A; 80A
Working frequency: 50/60Hz
Protection function: short circuit, overload, over voltage, phase loss, automatic alarm, remote control
Working temperature: 25° C+65° C/-40° C+75° C

技术及工艺创新要点：

1.无线回路控制器
保护功能：监测输出端用电情况，发生异常情况均可以迅速自动切断电源；
自动重合：实现无人值守，线路恢复正常后可自动进行重合闸；
计量功能：高精度的电压、电流实时监测和电能计量，利于用电侧的能耗分析；
无线通讯：具有本地的 RS485 通讯以及 GPRS(2G /3G)的无线通讯，可现实远程分合闸控制、故障查询以及计量数据的定时上报。
设备管理：具有完善的故障状态监测（过载、短路、过欠压、缺相、相间不平衡）并实时上报和给与告警提示。
电费管理：具有符合国标的费率分段计量，冻结数据等。结合无线通讯可实现电费的远程管理，欠费关闸。
人性化显示界面：具有超大的液晶屏显示，可实现远程和本地信息互通。计量参数和设备状态信息一目了然。

1. Wireless loop controller
Protection function: monitors the power consumption of the output terminal, and can automatically cut off the power supply in case of abnormal conditions;
Automatic reclosing: realize unattended, automatic reclosing after the line returns to normal;
Metering function: high-precision real-time monitoring of voltage and current and electric energy measurement, which is conducive to energy consumption analysis on the power consumption side;
Wireless communication: It has local RS485 communication and GPRS (2G /3G) wireless communication, which can realize remote opening and closing control, fault inquiry and timing report of metering data.
Equipment management: It has complete fault status monitoring (overload, short circuit, over-under-voltage, phase loss, phase-to-phase imbalance) and real-time reporting and warning prompts.
Electricity fee management: It has the fee rate segmented measurement that meets the national standard, and the data is frozen. Combined with wireless communication, remote management of electricity bills can be realized, and the arrears can be closed.
Humanized display interface: With a large LCD screen display, it can realize remote and local information exchange. The metering parameters and equipment status information are clear at a glance.

实际运用案例和用户评价意见：

申报单位介绍：

广东荣观物联科技有限公司是一家致力于物联网和大数据关键技术创新研发以及产业化推广， 进而提升企业单位和城市智慧水平的高新技术企业。公司以“简单可信赖，开放求共赢"为宗旨，并始终以帮助政府和企业实现信息化高效管理，绿色零排放为己任。总部设在东莞，深圳有研发中心，并在多个城市设立了营销与销售机构。公司目前主要提供基于物联网技术的智慧城市照明管理系统、光伏发电离网与并网系统，环境监控系统，智慧城市平台，私有云搭建等服务。具备业内罕见的软硬件解决能力、供应链渠道整合能力、数据价值开发能力以及完整的纵向服务基因。专注于智慧光伏、智慧社区、智慧工地、智慧农业四大细分领域，汇聚-批来自百度、 华为、腾讯、金立、扬智、思科等的专业背景人才，在产品规划、大数据分析、硬件接入、UI设计、移动开发、云端架构建设、系统集成、数据产品及应用等方面极富经验。

Guangdong Rongguan IOT Technology Co., Ltd. is a high-tech enterprise dedicated to the innovation, research and development and industrialization of key technologies of the Internet of Things and big data, thereby enhancing the level of corporate intelligence and urban intelligence. The company takes "simple and trustworthy, open and win-win" as its purpose, and always takes it as its mission to help the government and enterprises realize information-based efficient management and green zero emissions. Headquartered in Dongguan, Shenzhen has a research and development center, and has established marketing and sales organizations in many cities. The company currently mainly provides services such as smart city lighting management systems, photovoltaic power generation off-grid and grid-connected systems, environmental monitoring systems, smart city platforms, and private cloud construction based on Internet of Things technology. Rare in the industry
Software and hardware solutions, supply chain channel integration capabilities, data value development capabilities, and complete vertical service genes. Focusing on the four sub-sectors of smart photovoltaics, smart communities, smart construction sites, and smart agriculture, it gathers talents with professional backgrounds Baidu, Huawei, Tencent, Gionee, Yangzhi, Cisco, etc., in product planning, big data analysis, and hardware He has extensive experience in access, UI design, mobile development, cloud architecture construction, system integration, data products and applications.

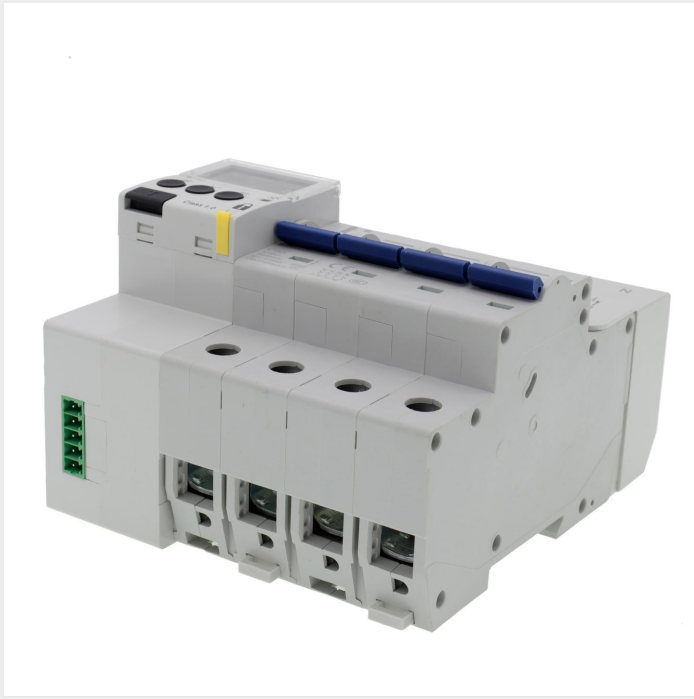

产品图片：
