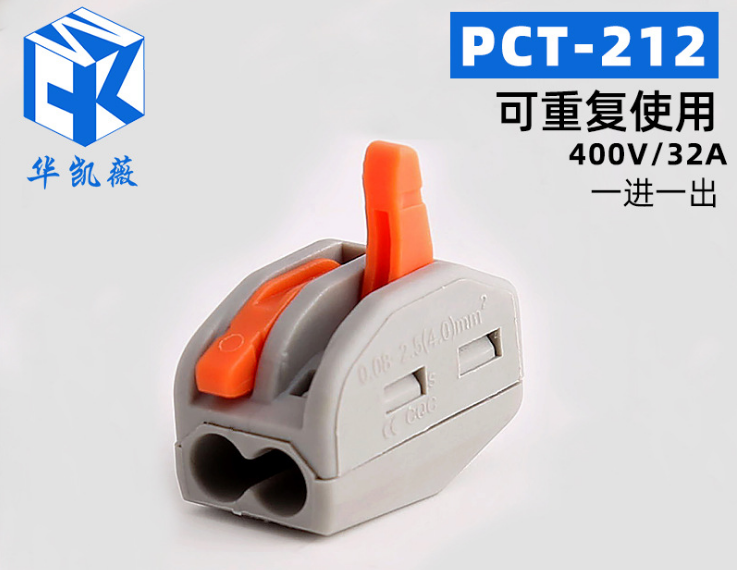

项目名称： 大电流PCT-212快速接线端子

High current PCT-212 fast terminal block|

申报单位： 深圳市华凯薇实业有限公司

综合介绍或申报理由：

华凯薇成立于2008年，发展至今已拓展至4500m2的接线端子生产基地，华凯薇专业研发生产生建筑布线快速接线端子、PTC电线连接器、照明系列端子以及防水系列连接器。 华凯薇以研发为核心，以创造为动力，不断开拓和发展，致力于为全球提供更专业的电连接器而努力。

FOUNDEO IN 2008, HUA KAIVWEI HAS DEVELOPED INTO A WIRING TERMINAL PRODUCTION BASE OF 4500M*2. THE PROFESSIONAL RESEARCH OF HUA KAIWEI HAS PRODUCED QUICK WIRING TERMINALS FOR BUILDING WIRING, PTC WIRE CONNECTORS, LUGHTING TERMINALS AND WATERPROOF CONNECTORS. WITH RESEARCH AND DEVELOPMENT AS THE CORE ANDCREATION AS THE DRIVING FORCE, HUA KAIWEI IS COMMITTED TO PROVIDING MORE PROFESSIONAL ELECTRICAL CONNECTORS FOR THE WHOLE WORLD,

项目宣传视频： https://b2b.alighting.com/exh/841A6QNXMP/videodetail-3198.html

主要技术参数：

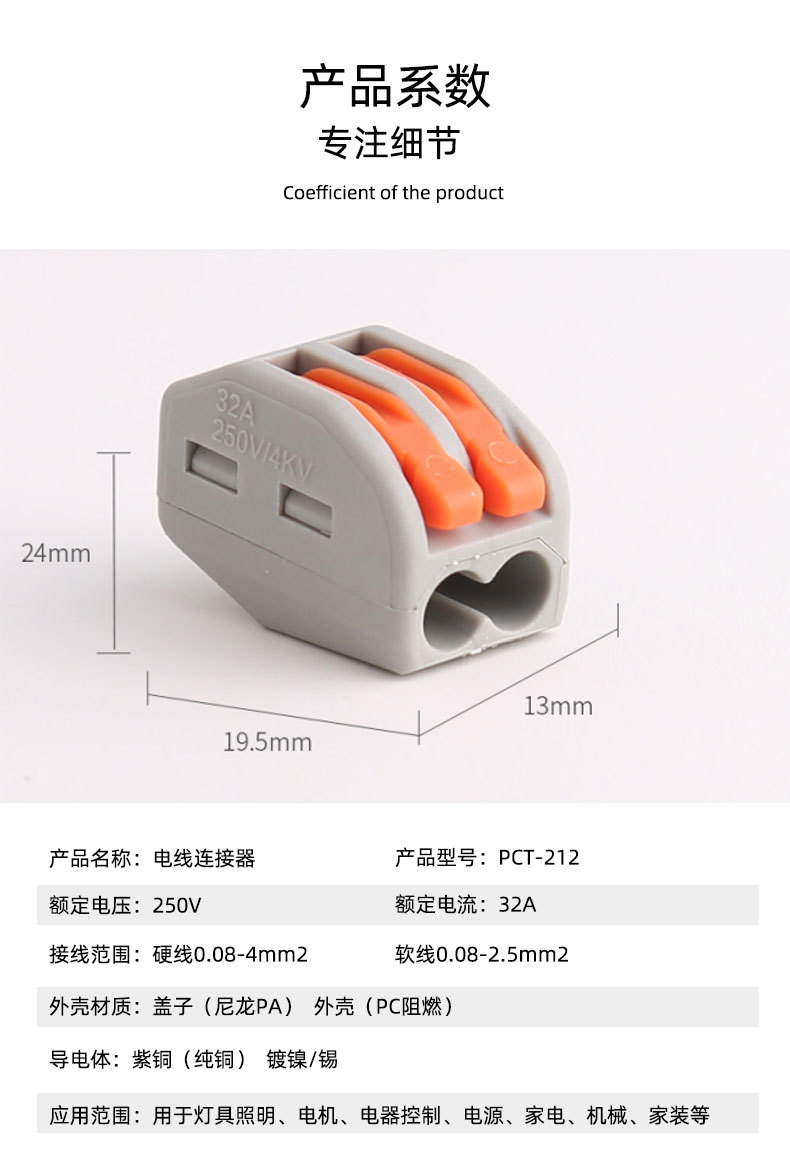

Product Name: Wire Connector Product Model: PCT-212
Rated voltage: 250V Rated current: 32A
Wiring range: hard wire 0.08-4mm2 soft wire 0.08-2.5mm2
Shell material: cover (nylon PA) shell (PC flame retardant)
Conductor: copper (pure copper) nickel/tin plating

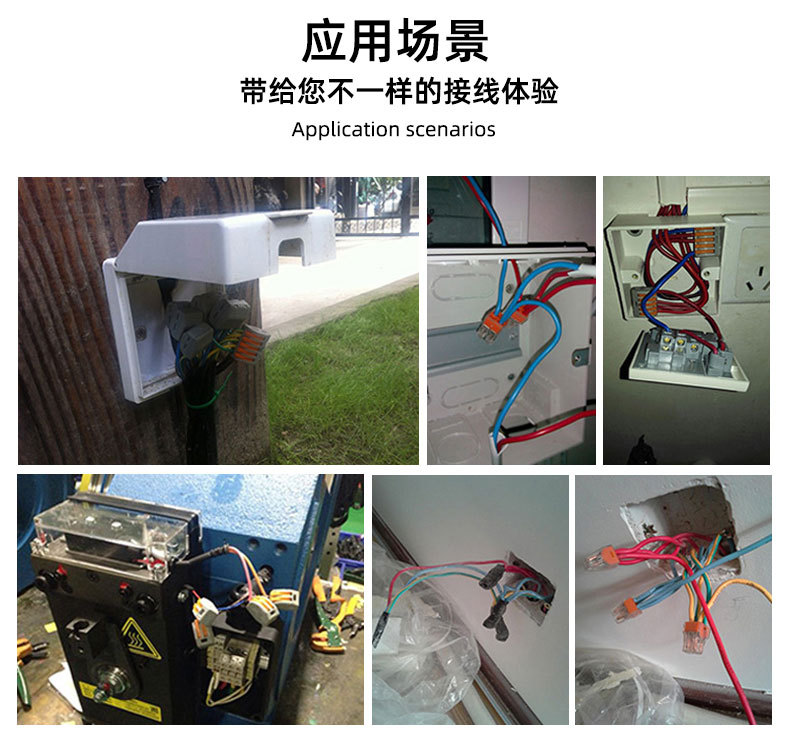

Application range: used for lighting, motors, electrical control, power supplies, home appliances, machinery, home improvement, etc.

技术及工艺创新要点：

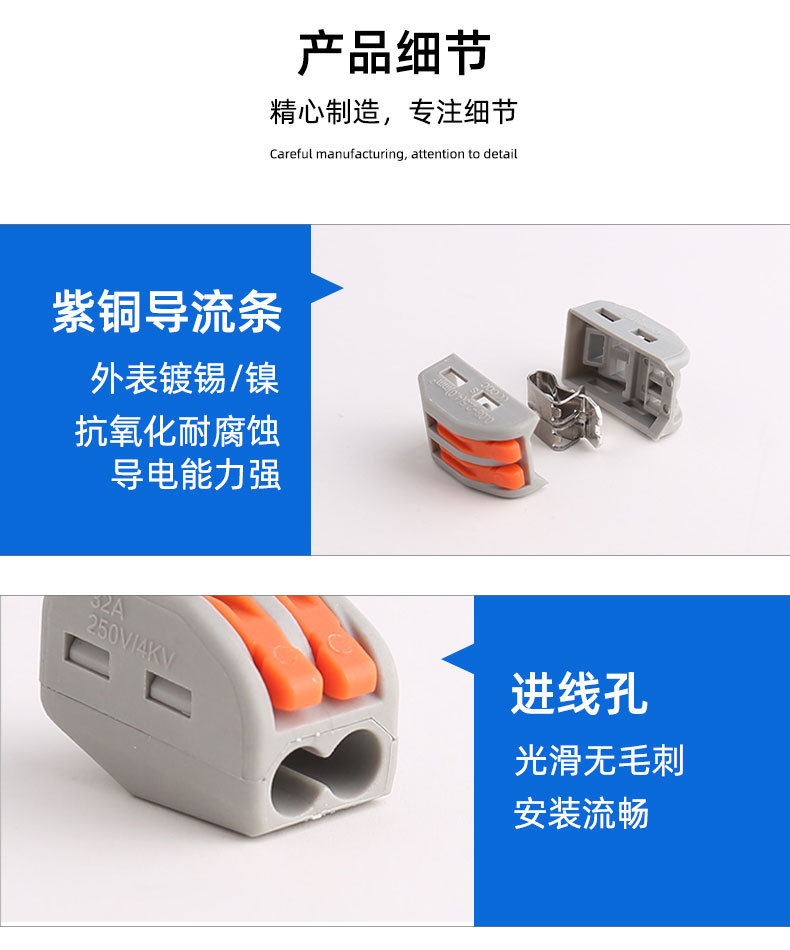

1.紫铜导流条，外表镀锡/镍，抗氧化耐腐蚀导电能力强.
2.进线孔光滑无毛刺安装流畅.

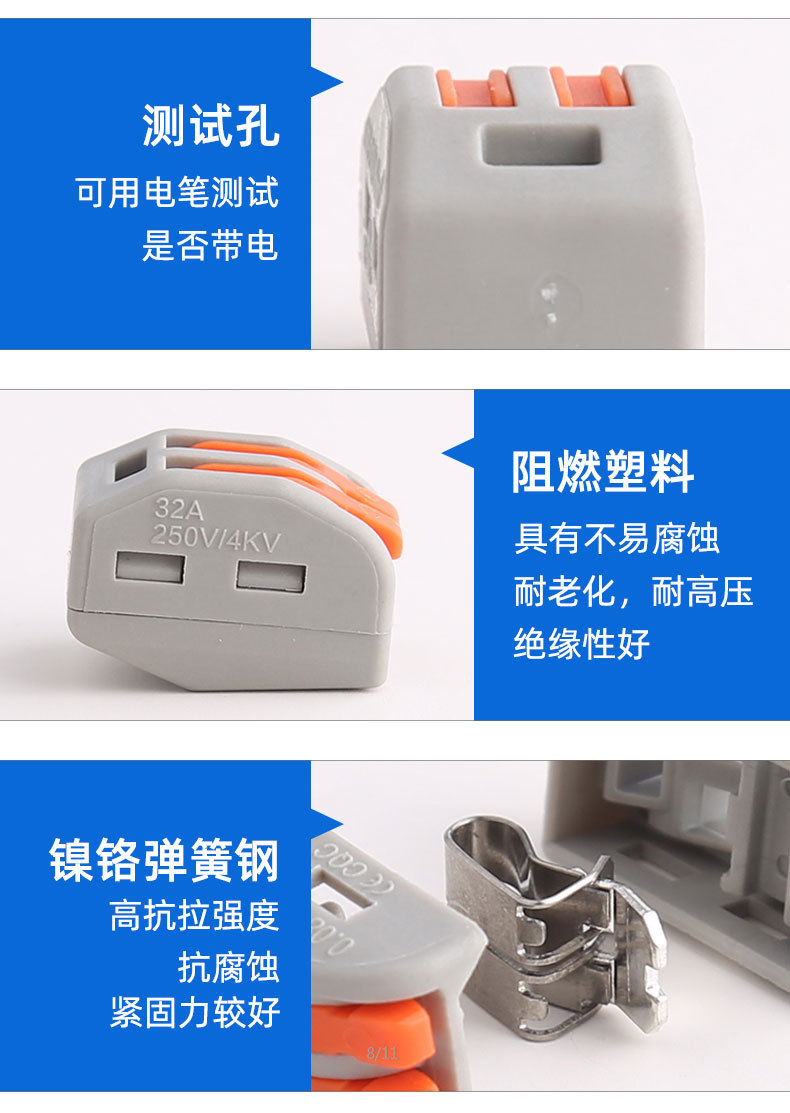

3.测试孔可用电笔测试是否带电.
4.阻燃塑料具有不易腐蚀耐老化，耐高压绝缘性好.
5.镍铬弹簧钢高抗拉强度，抗腐蚀，紧固力较好

1. Red copper guide strip, tin/nickel plated on the surface, strong resistance to oxidation, corrosion and electrical conductivity.
2. The inlet hole is smooth and without burrs, and the installation is smooth.
3.The test hole can be tested with an electric pen if it is ged.
4. Flame-retardant plastics are resistant to corrosion, aging, and high-voltage resistance.
5. Nickel-omium spring steel has high tensile strength, corrosion resistance and good fastening force

实际运用案例和用户评价意见：

申报单位介绍：

深圳市华凯薇实业有限公司成立于2008年，发展至今已扩展至4500M^2的接线端子、PTC电线连接器、照明系列端子以及防水系列连接器。华凯薇以研发为核心，以创造为动力，不断开拓和发展，致力于为全球提供更专业的电连接器而努力。

产品图片：
