　　Program information

　　项目信息

　　Lighting design:Cannon Design

　　灯光设计：Cannon Design

　　Lamps and lanterns manufacturer: Lumenpulse Lumenpulse

　　灯具制造商：Lumenpulse Lumenpulse

　　Location：LAS VEGAS,NV USA

　　位置：拉斯维加斯,内华达州，美国

　　Completion:10 MAY 2012

　　竣工时间：2012年5月10日

文编/郑贞

　　The new M.D. Anderson cancer Center is located in the campus of Banner Gateway Medical Center, has the most advanced medical equipment.76 rooms, more than 300 employees dedicated to cancer treatment.A 133,000 - square - foot facility is designed to provide personalized, comprehensive treatment of patients. Three-story cancer center to accommodate the internal medicine clinic, medical imaging and radiation oncology, perfusion therapy, and other major patient care services.

　　新建的美国MD安德森癌症中心位于Banner Gateway Medical Center校园内，拥有最先进的医疗设备。76个房间，超过300名工作人员致力于癌症治疗。133,000平方英尺的设施是为病人提供个性化、全面治疗而设计的。三层楼高的癌症中心容纳了内科诊所、医学成像、放射肿瘤科、灌注治疗和其他一些主要的病人护理服务项目。

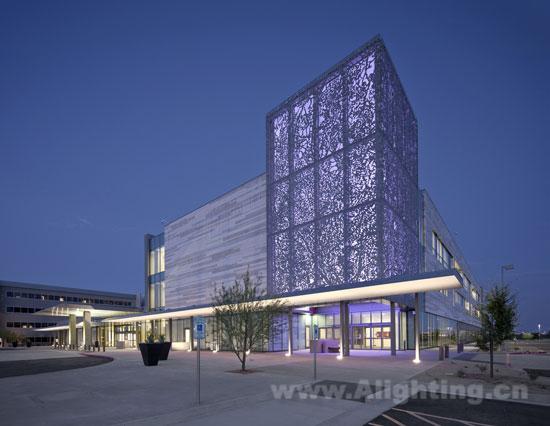

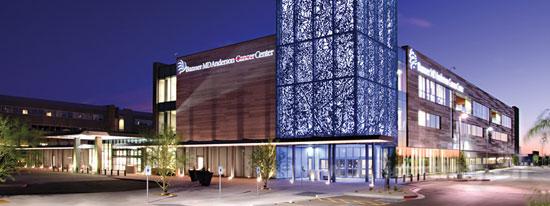

　　Positioned at the entry of the new oncology center, the Lantern’s vivid, uniform glow serves as a beacon of hope and a symbol of the hospital’s steadfast commitment to the eradication of cancer. The panels cladding the structure – cut to represent the canopy of the Palo Verde or “nurse” tree – filter dappled sunlight to the entry and balconies through a fabric scrim by day, and are backlit by grazing the fabric with light to create an inspiring visual icon at night.

　　这座新肿瘤中心的入口处，如一盏明灯一样的灯笼，闪烁着生动的光芒，仿佛是希望的灯塔，象征着医院坚定根除癌症的承诺。面板包层结构则代表了帕洛贝尔德林冠或“护士”树，白天，斑驳的阳光通过一张面料麻布过滤到入口处和阳台的树冠。晚上，从背部打的光线透过放牧的织布，创建了一种鼓舞人心的视觉效果。

　　“Whilst color can often be over utilized, here it is used in a subtle and appropriate way,” one judge commented.“The skilled execution and the design composition of silhouette lighting of the vertical tower and the even wash of the horizontal awning create a beautiful image of the building.”

　　“虽然色彩可以经常被利用，而这里的色彩以一种微妙和适当的方式被运用着，”一位见证者评论道，“熟练的执行和设计组成的垂直塔似的照明轮廓，同被洗亮的水平天幕共同创造了一个美丽的建筑形象。”

　　With accessibility, maintenance and longevity in mind, robust yet small scale IP66 luminaires with long-life LEDs were selected to withstand the harsh desert climate. Luminaires are located in a double row at the base of the four-story panel spans and in a single row at the bottom of the single-story spans. Maintainable from the balconies, the upper luminaires are dimmed to a level that allows their output to seamlessly match that of the lower level’s reach.

　　项目选用了坚固而小型的IP66灯具和长寿命LED灯具，由于其可接近性、可维护性和长寿性等特性，使其可以承受严酷的沙漠气候。灯具都被双排安装于该基地四层小楼跨越面板和单排安装于一个单层建筑的底部，阳台部分的灯具可以得到额外的维护，其上面的照明器具通常被调暗到一定程度，以允许它们的光输出可以和稍低层次的范围无缝匹配。

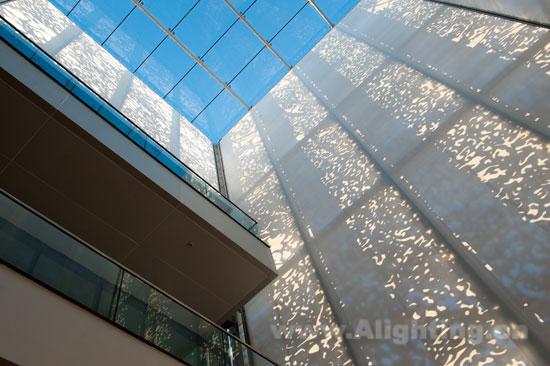

　　Playful contrast of light and shadow provides a softly luminous space of transition to the building during the day. Relaxing vantage points for the ever-changing natural light show are offered from adjacent second and third floor balconies.

　　顽皮的光线和阴影的对比提供了一个白天过渡到建筑的轻柔发光的空间。轻松、健康、富有变化的自然光线充盈在第二和第三层相邻的阳台之间。

　　Narrow optic, high-output, RBG color-changing LEDs met the design challenges of reach, energy efficiency and control. A DMX control package with client-driven presets allows the owner to use the Lantern to communicate cancer awareness months, holidays and special events through smoothly fading color and kinesis.Special diffusing film applied to the lensing aides in the blending of the RBG created colors at each panel base. Generally, the Lantern will glow in lavender - the universal color for cancer awareness.

　　狭窄视神经、高输出、篮板变色LED的运用，满足了设计到达率、能源效率和控制度的挑战。其中装置了一个包含客户驱动装置的DMX控制包，允许业主使用灯笼，特别是通过色彩和平稳抛落的特殊部分与癌症意识进行数月或数个节假日的沟通。在每个篮色面板创建基底上的混合颜色组，透镜的附件中运用了特殊的扩散膜。通常，这个灯笼一般的建筑在薰衣草丛中发出耀眼的光芒——变幻呈现的正是癌症警觉的通用色彩。
