产品 > 齿轮式主机 Main machine by gear
齿轮式主机 Main machine by gear
| 多头机系列技术参数Intermediate Wire Drawing Machine | ||||

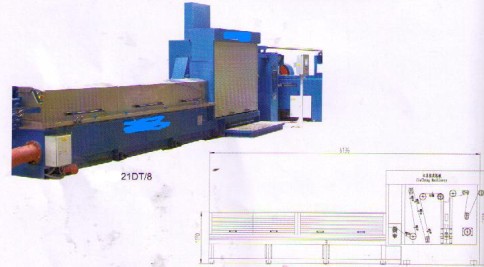

| 产品型号Mainchine type | IT450/13/2 | DT21/8 | DT9/2 | DT24/2 |
| Max.Inlet Dia.(mm) | 2×ф8 | 8×ф1.8 | 2×ф3.5 | 2×ф1.0 |
| 出线线径Outlet Dia(mm) | 2×(ф1.2-ф3.5) | 8×(ф0.1-ф0.4) | 2×(ф1.2-ф2.8) | 2×(ф0.15-ф0.35) |
| Max.Die.No | 2×13 | 8×21 | 2×9 | 2×24 |
| Max.line Speed | Max1500 | Max1800 | Max1200 | Max1500 |
| Body Structure | Ironed cast | Welded by steel plate | ||
| Drwaing capstan | Tungsten plasma capstan | Zlrconlum oxlde porcelain | Tungsten plasma capstan | Ceramic plasma capstan |
| Slip ratio of m/c | 40％-8％ | 20％+16％ | 18% | 13% |
| Main motor power | DC510 | DC90 | DC90 | 15 |
| Fix speed capastan motor power(kw) | DC90 | DC37 | ||
| Take-up motor(kw) | 18.5/22×2 | 11 | 15 | 4 |
| Fix speed capastan Dia(mm) | ф450 | ф100 | ф300 | ф160 |
| Lubrication type | Immersed type | Spray | Full immersion | Spray |
| Max annealing voltage | AC55 | DC60 | DC60 | DC60 |
| Max annealing current | AC8000 | DC1500 | DC4000 | DC300 |
| Take-up type | Coller Spooler | Spoolerф500/ф630 | Spoolerф500/ф630 | Spoolerф300/ф400 |
