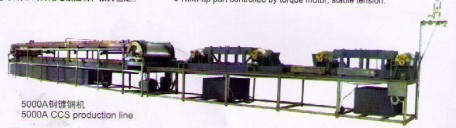

5000A钢镀钢机 5000A CCSproduction line
| 铜包钢系列技术参数Wire Drawing Machine (CCSW series) | ||||
| 产品型号Mainchine type | B20 | 4D | 24D | 24DL |
| 动力控制Inverter Control | 水平四轴four cones in horizontal | 水平四轴four cones in horizontal | 立式四轴four cones in vertical | |
| 主机结构Main machine structure | ф1.6 | ф1.0 | ф1.0 | |
| 最大入线线径Max.Inlet Dia.(mm) | 0.30-ф0.65 | ф0.25-ф0.50 | ф0.10-ф0.25 | ф0.08-ф0.25 |
| 出线线径Outlet Dia(mm) | 19 | 14 | 24 | 24 |
| 最多模具数Max.Die.No | 1500 | 1200 | 2000 | 2000 |
| 最高线速度Max.line Speed | 钢板焊接Welded | 一体铸造Ironed cast | ||
| 主机箱体结构Body Structure | 喷瓷处理Ceramic plasma capstan | |||
| 拉丝搭轮Drwaing capstan | 15 | 15 | 13 | 10 |
| 机械见面率Slip ratio of m/c | 15 | 15 | 11 | |
| 主电机功率Main motor power | 5.5 | 5.5 | 4 | |
| 收线电机功率Take-up motor(kw) | ф200 | ф268 | ф160 | |
| 定速轮直径Fix speed capastan Dia(mm) | 同步带Synchronous Belt | 平皮带Falt Belt | ||
| 传动方式Transmission type | ф300/ф400 | ф300 | ||
| 收线盘尺寸Take-up bobbin size(mm) | 同步电机+平皮带Synchronous moto+belt | |||
| 排线方式tranersing type | 配重方式Weight Blance Type | |||
| 张力调整方式Tension control | 全浸式Full immersion | 喷淋式Spray | ||
| 拉丝润滑方式Lubrication type | 电磁刹车Magnetic Brake | |||
| 制动方式Brake | 2600 | 2200 | 2300 | 2300 |
