400型中速铜大拉机 400 Copper Rod Breakdown Machine

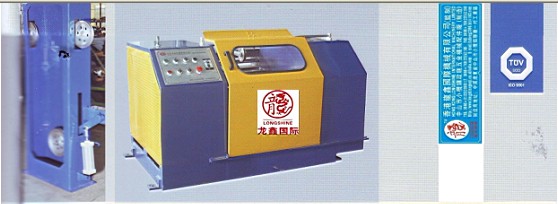

| 400高速绞线机 400High-speed wire bunching machine | |
| 用途：自动高速绞线机适用于电子线、汽车线、电源线、多股铜线及PVC芯线对绞漆包线等绞合。 | |
| Application:Automatic high-speed stranding machines apply for the electronics line,car line ,power line, multi-unit copper and PVC core twisted enameled wire strands. | |
| 主要技术参数Main technical parameter | |
| 机械规格Unit specification | 400高速自动绞线机 |
| 绞合限度Twist limit | 适用七股以上铜线绞合Axis-line twisting for 7-pairs |
| 拾线径Line-given Dia | ф0.08mm-ф0.45mm |
| 绞合所面积Twist pitch | 0.035-0.1.25mm2 |
| 绞距Twist pitch | 4.08-31.5mm(标准28谐段standard 28-segment) |
| 绞向Twist Direction | 自由选择向左或向右Free cgiuce from L to R |
| 卷曲轴Roll axis | ф400mm |
| 排线Line arrangement | 轴承排线，排幅，排距均可调整Line amplitude,pitch arrangement(adjustable)in bear |
| 主马达Main motor | 5HP马达加变频器控制Motor & Fvarylng unit control |
| 主轴高度Main-axis height | 700mm |
| 刹车系统Braker system | 采用电磁刹车内外断线自动刹车Auto braking using the internal & external short-line of the braker |
| 噪音Noise | 约（about）75分贝（D.B) |
| 体积Volume | L2,400,XW1,100XH1,250mm |
| 重量Weight | 约（about）1500kgs |
| 涂装Paint & decoration | (No.2)苹果绿（Apple green) |
