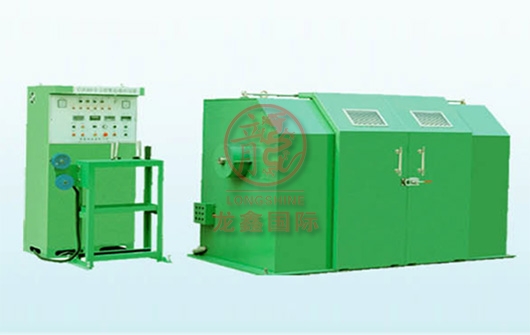

自动双绞机
|
自动双绞机技术参数 | |||||||
|
Double twist manchine parameters | |||||||
|
机型Model |
机械式Mechanism |
全自动设定式Automatim | |||||
|
|
LS-800A |
LS-1000A |
QFN-1200A |
LS-630A |
LS-800A |
LS-900A |
LS-1000A |
|
用途Purpose |
3～7条绝缘芯线绞合Suitable for intertwisting3～7 pieces of insulated core wires |
2～7条绝缘芯线绞合Suitable for intertwisting2～7 pieces of insulated core wires | |||||
|
主机转速Mainframe rotion |
最高Max.800RPM |
最高Max.600RPM |
最高Max.500RPM |
最高Max.1200RPM |
最高Max.1000RPM |
最高Max.850RPM |
最高Max.750RPM |
|
适用线径Apply wire dia. |
单芯Sigle core Φ4mm以下hereinafter |
单芯Sigle core Φ6mm以下hereinafter |
单芯Sigle core Φ6mm以下hereinafter |
单芯Sigle core Φ0.58mm～Φ1.5mm |
单芯Sigle core Φ1.5mm～Φ3.6mm |
单芯Sigle core Φ1.5mm～Φ3.6mm |
单芯Sigle core Φ1.5mm～Φ3.6mm |
|
绞距范围twisting distance |
20mm-150mm |
30mm-300mm |
30mm-300mm |
25mm-90mm |
20mm-150mm |
20mm-150mm |
20mm-150mm |
|
绞距变换twisting distance transform |
机械式Mechanism |
数据设定式Automatim | |||||
|
绞向twisiting direction |
左/右自由选择Rightor left | ||||||
|
排线方式Rolling mode |
光杆排线器Line up a line machine | ||||||
|
张力控制Tension control |
磁粉离合器Magnetic powder clutch |
/ |
/ |
/ |
/ | ||
|
卷取轴Enrolling axis |
Φ800外径 Exterior dia. |
Φ1000外径 Exterior dia. |
Φ1200外径 Exterior dia. |
Φ630外径 Exterior dia. |
Φ800外径 Exterior dia. |
Φ900外径 Exterior dia. |
Φ1000外径 Exterior dia. |
|
上下轴方式 Top and bottom axis mode |
电动机Moto+液压升降Hydraulic pressure rise and fall | ||||||
