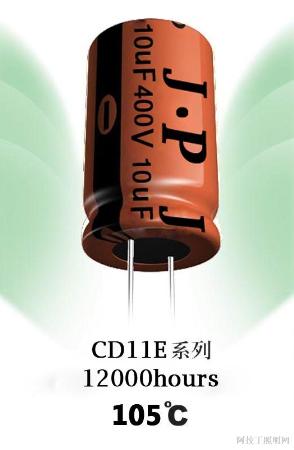

CD11E系列 铝电解电容器
■ CD11E特性 FEATURE
*寿命：105℃12000小时Load life：105℃12000 hours
*耐纹波特长寿命品High ripple current and extremely long life
*适用于电子节能灯、电子镇流器 Designed for electronic ballast and energy saving lamp
特性表 specifications
|
项目Item |
特性Characteristics | |||||||||||||||
|
额定工作电压范围 Rated Working Voltage Range |
160 Vdc ~ 450Vdc | |||||||||||||||
|
使用温度范围 Operating Temperature Range |
-40℃~ +105℃ | |||||||||||||||
|
标称静电容量范围 Nominal Capacitance Range |
1μF ~150μF | |||||||||||||||
|
静电容量允许偏差 Capacitance Tolerance |
±20%（M，+20℃，120Hz） | |||||||||||||||
|
漏电流 Leakage Current |
| |||||||||||||||
|
损耗角正切值（tanδ） Dissipation Factor |
| |||||||||||||||
|
温度特性 Temperature Stability
|
| |||||||||||||||
|
高温负荷特性 Load life |
在+105℃ 环境中施加额定工作电压和最大允许纹波电流12000小时后,电容器的性能符合下面要求：
After application of rated working voltage with max permissible ripple current specified at +105℃ for 12000 hours , capacitors meet the characteristics requirements listed below | |||||||||||||||
|
高温贮存特性 Shelf life |
在+105℃环境中无负荷放置1000小时后, 电容器的性能符合下面要求： After leaving capacitors under no load at +105℃for 1000 hours，capacitors meet the characteristics requirements listed below
| |||||||||||||||
