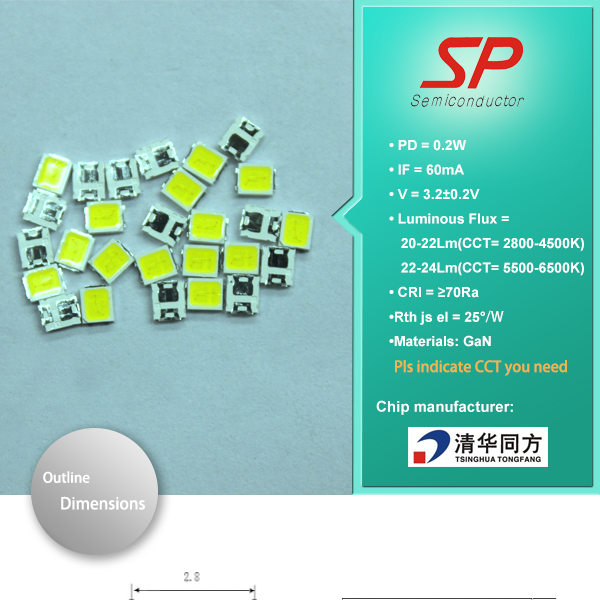

White 0.2w 20-26Lm 60mA 2835 SMD LED diode
White 0.2w 20-26Lm 60mA 2835 SMD LED
Shenzhen SP Main Products:

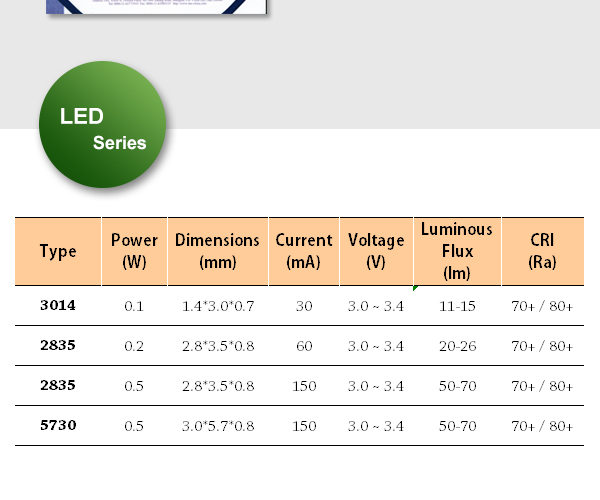

| Type | Power (w) | Dimensions (mm) | Current (mA) | Voltage (V) | Luminous Flux (Lm) | CRI (Ra) |
| 3014 | 0.1 | 1.4*3.0*0.7 | 30 | 3.0-3.2 | 11-15 | >70 or >80 |
| 2835 | 0.2 | 2.8*3.5*0.8 | 60 | 3.0-3.2 | 20-26 | >70 or >80 |
| 2835 | 0.5 | 2.8*3.5*0.8 | 60 | 6.0-6.4 | 45-60 | >70 or >80 |
| 5730 | 0.5 | 3.0*5.7*0.8 | 150 | 3.0-3.2 | 55-70 | >70 or >80 |
| Main product include: LED IGBT MOSFET BJT SBD | |
| LED: | 3014 2538 5730 |
| BJT: | 13001 13003 13005 13007 13009 |
| MOSFET: | 1N60 2N60 4N60 7N60 10N60 12N60 13N50 18N20 15N20 730 740 830 840 |
Main package: TO-92 TO-126 TO-220 TO-220F TO-247 TO-3P TO-251 TO-252 TO-262
1.Free sample for test
2.MOQ: 4000pcs (1 bag)
3.Supply ability: 20,000,000pcs/month
4.Payment: T/T or L/C
ROHS, REACH, GP, halogen-free
100% Original & New
