项目名称： 二次防水LED洗墙灯BOND-WW-4830

Double waterproof LED wall washing lamp-BOND-WW-4830

申报单位： 广东瑞邦照明科技有限公司

综合介绍或申报理由：

户外照明灯具需要长期经受冰雪烈日、风雨雷电的考验，且造价较高，而因在外墙上使用较难拆修，须满足长期稳定工作的要求。而LED是娇贵的半导体元件，若受潮，就会出现芯片吸湿现象，损坏LED、PCB和其他元件。LED户外灯具的防水问题与其寿命息息相关。结构防水与材料防水各有优缺点，单一的防水设计很难达到极高的可靠性，渗水的潜在隐患仍然存在。因此，在实际设计、生产中，应灵活结合结构防水与材料防水技术的优点，扬长避短，以此来保证户外灯具的长期稳定工作。我司研发的此款LED洗墙灯，将灌胶防水+结构防水结合，极大提高LED洗墙灯的使用寿命。

Outdoor lighting fixtures need to withstand the test of snow, scorching sun, storms and lightning for a long time, and the cost is high, and because it is difficult to disassemble on the external wall, it must meet the requirements of long-term stable work. LEDs are delicate semiconductor components. If they are wet, the chip will absorb moisture and damage LEDs, PCBs and other components. The waterproof problem of LED outdoor lamps is closely related to its life. Structural waterproofing and material waterproofing have their own advantages and disadvantages. It is difficult to achieve high reliability with a single waterproof design, and the potential hidden danger of water leakage still exists. Therefore, in the actual design and production, the advantages of structural waterproofing and material waterproofing technology should be flexibly combined, so as to avoid disadvantages, so as to ensure the long-term stable operation of outdoor lamps. The LED wall washer developed by our company combines the glue-filled waterproofing + structural waterproofing, which greatly improves the service life of the LED wall washer.

项目宣传视频：

主要技术参数：

LED颜色 Color Temperature：单色Single color/RGB/RGBW

额定功率 Rated power：36W

光源数量 Led quantity：36

光源规格 Led light source：3030

额定电压 Input voltage：24V

保护等级 IEC 安全等级：III Safety Level III

可配遮光板Anti-glare baffle optional ：是 YES

透镜角度 Lens Angle： 30°/ 45°/ 10*40°/ 10*60°等

透镜类型 Optical lens ：PC/蜂窝防眩光Honeycomb anti

光源平均寿命 Average Lifespan：50000小时

控制方式 Control Method：常亮normally on/DMX512

额定电流 Rated current：1.5A

最大串接数量1 way max long distance ：2支pixels

接头类型 Connector type ： M16

初始光通量 Initial Liminous Flux 2984 lm

显色指数 CRI：80

光 效 Luminous efficiency：82.9 lm/W

外观色泽 Appearance Color：砂银grey

工作湿度 Working huity：0%~95%

工作温度 Working Temperature： -30℃~55℃

IP 等 级 IP rating：IP66

防护类型 Protection type：灌胶防水Glue +结构防水structure

重量 Weight ： 2.67 kg/m

灯体材质 Material of Fixture：6063拉伸铝材streched alluminum

面罩材质 Cover material：丝印网孔钢化玻璃 Tempered glass

长度 Length：1003mm

宽度 Width：48mm

高度 Height：30mm

BOND-WW-4830 检验报告.pdf

与国内外同类产品或同类技术的比较情况：

目前市面上的LED洗墙灯大多以单防水设计为主，我司结合结构防水与灌胶防水技术的优点，研发出此款双重防水LED洗墙灯，极大提高LED洗墙灯的使用寿命。

At present, most of the LED wall washer lights on the market are designed with a single waterproof design. Our company combined the advantages of structural waterproofing and glue waterproof technology to develop this dual waterproof LED wall washer, which greatly improves the service life of LED wall washer.

经济评价分析：

户外照明灯具需要长期经受冰雪烈日、风雨雷电的考验，且造价较高，而因在外墙上使用较难拆修，须满足长期稳定工作的要求。稳定可靠，寿命长的LED洗墙灯必然是发展趋势。

Outdoor lighting fixtures need to withstand the test of snow, scorching sun, storms and lightning for a long time, and the cost is high, and because it is difficult to disassemble on the external wall, it must meet the requirements of long-term stable work. Stable and reliable, long life LED wall washer is bound to be a development trend.

技术及工艺创新要点：

此款LED洗墙灯结合结构防水与灌胶防水技术的优点，扬长避短，极大提高LED洗墙灯的使用寿命。加上我司研发的压边条工艺，使灯具的结构防水性能更加可靠。并可以根据客户需求，定制添加蜂窝罩，从而减少炫光。

This LED wall washer combines the advantages of structural waterproofing and glue-filling waterproof technology to enhance strengths and avoid weaknesses, which greatly increases the service life of LED wall washer. Coupled with the blank holder technology developed by our company, the waterproof performance of the structure of the lamp is more reliable. And can be customized to add honeycomb cover according to customer needs, thereby reducing glare.

实际运用案例和用户评价意见：

此款灯具产品应用于广东揭阳大桥，通用RGBW彩色的融合，将揭阳大桥的美丽呈现出来，并成为当地的夜景地标。大桥全长2441.5米，主桥横跨榕江南河，索塔为钻石型结构，塔高120米，为主跨300米的双塔双索面半漂浮体系钢混组合梁斜拉桥。2021年2月9日上午，正式通车。

This lighting product is applied to Jieyang bridge in Guangdong Province. The integration of general RGBW color shows the beauty of Jieyang bridge and becomes a local night scene landmark. The total length of the bridge is 2441.5 meters. The main bridge spans the South River of Rongjiang river. The cable tower is a diamond shaped structure with a tower height of 120 meters and a main span of 300 meters. On the morning of February 9, 2021, it will be officially opened to traffic.

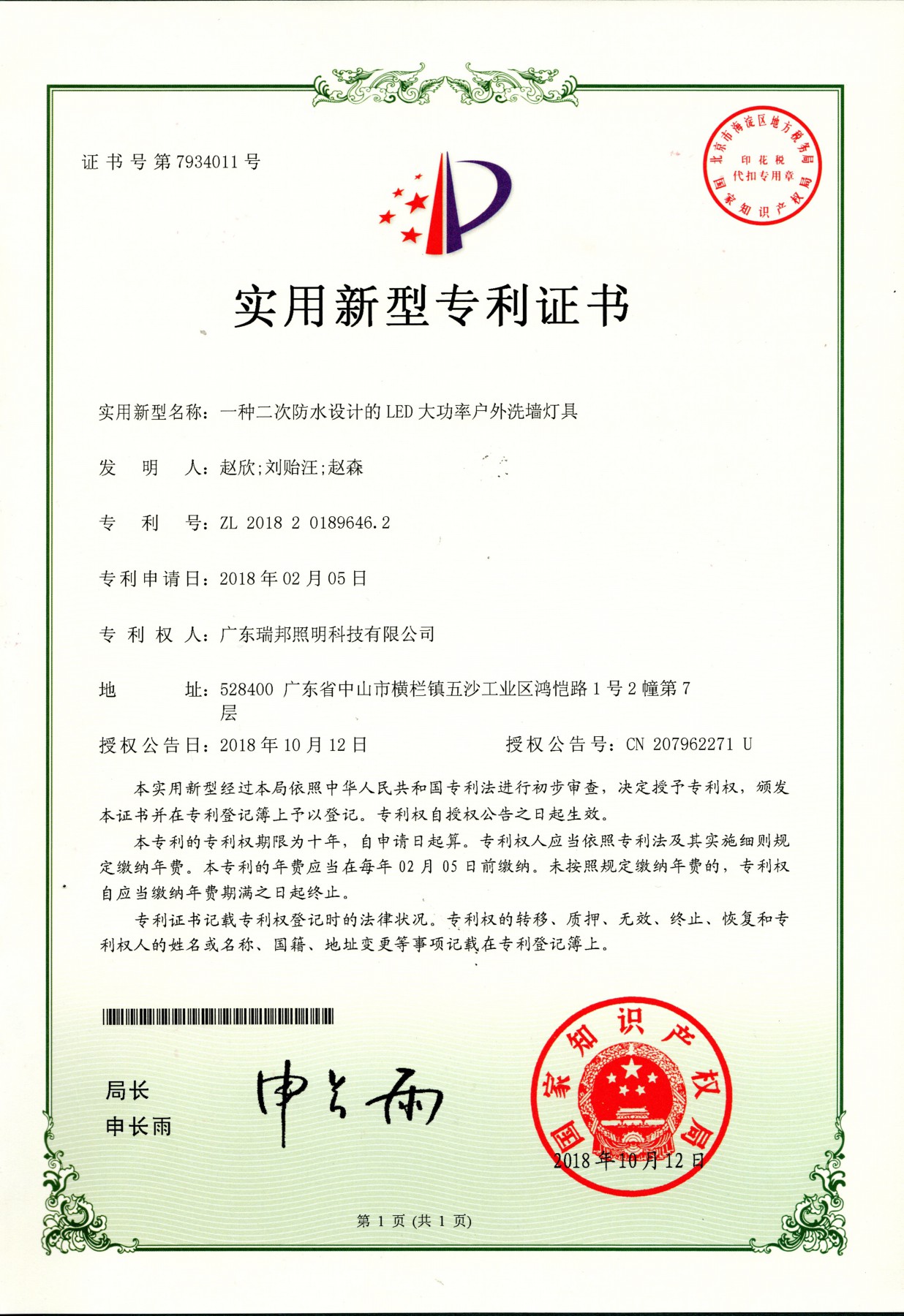

获奖、专利情况：

申报单位介绍：

广东瑞邦照明科技有限公司始创于2010年，自成立以来始终专注于LED户外景观照明产品，历经8年的技术积累已发展成为专业从事研发、生产和销售LED线条灯、LED洗墙灯、LED点光源产品的诚信经营示范企业，中国照明学会团体会员单位。

RUIBOND瑞邦德为注册商标，在中国拥有15家运营中心，为客户提供完善的售前售中售后服务体系。拥有行业标准的检测设备，同时获得各项企业资质证书如CE、ROHS、3C、ISO、专利；荣获3A级信用企业、3A级重合同守信用企业、中国著名品牌、中国灯饰行业十大品牌、绿色环保首选产品等证书。

Guangdong Ruibond Lighting Technology Co., Ltd, founded in 2010, has been specialized in producing led outdoor landscape light formany years.
Ruibond lighting is an integrated enterprise of R&D, production and sales in LED linear light, LED wall washer, LED point light source etc. We are a member of CIES.

RUIBOND is a registered brand in China, we have 15 Chinese branches to provide customers with a comprehensive pre-sales -sales and after-sale service. Moreover, we have industry-standard testing equipment, and obtained various corporate qualification certificates such as CE, ROHS, CCC, ISO9001, patents. RUIBOND Lighting enjoy following good reputations: Chinese famous brand, Chinese top ten lighting industry brand, green-energy products, 3A level corporate credit enterprise, 3A level Contract and trustworthy enterprise etc.

产品图片：
