项目名称： 惠州市城市照明路灯漏电监测终端设备

Huizhou City lighting street lamp leakage monitoring terminal equipment procurement

申报单位： 广东正力通用电气有限公司

综合介绍或申报理由：

城市照明是一种较为特别的用电设备，其特点是分布广，易受外力破坏。因此，当带电设备的绝缘破损时及下雨时，则路灯处于带电状态，人触摸或者走到路灯边积水时则会发生触电事故，惠州市城市照明管理处通过公开招标采购了广东正力通用电气有限公司230台ZLZ1113型路灯漏电监测终端设备，实现对供电线路的漏电实时监测、漏电过程全记录、漏电超标自动关闭漏电回路、重合闸管理等功能，实时发现线路漏电情况，保证用电安全，避免产生人身伤害，有效的防止触电事故的发生，产生极大的社会效益，从而进一步的提高城市的形象。

Urban lighting is a special kind of electrical equipment, which is acterized by a wide distribution and is easily damaged by external forces. Therefore, when the insulation of live equipment is damaged or when it rains, the street lamp is in a ged state, and an electric shock accident may occur when people touch or walk to the side of the street lamp. The Huizhou City Lighting Management Office purchased Guangdong Zhengli through public bidding. General Electric Co., Ltd. 230 sets of ZLZ1113 street lamp leakage monitoring terminal equipment, realizing the real-time monitoring of the leakage of the power supply line, the full recording of the leakage process, the automatic closing of the leakage circuit and the reclosing management when the leakage exceeds the standard, and the real-time detection of the leakage of the line to ensure the use of electricity It is safe, avoids personal injury, effectively prevents electric shock accidents, and produces great social benefits, thereby further improving the image of the city.

项目宣传视频： https://b2b.alighting.com/headline/TPFKM74HGQ/videodetail-5260.html

主要技术参数：

漏电监测终端具有：
（1）全天后候24小时 (开关灯均可)实时各条输出线路漏电监测；
（2）可自定义对监测线路进行命名；
（3）当监测线缆发生漏电故障时系统自动分析判断出线路所在方向；
（4）漏电报警模式：能够远程独立设定漏电报警值和漏电保护值；
（5）漏电跳闸保护方式：对照明线路漏电进行全自动的监测，漏电终端保护方式为本地保护，不能通过网络方式保护；
（6）漏电跳闸保护恢复 ： 远程复位；
（7）可通过远程设置漏电监测和漏电保护的启/停
（8）漏电保护重合闸 ： 远程设置自动重合闸，可支持设定多次重合闸次数；
（9）漏电流可远程查询及变化超限主动报警功能；
（10）漏电流超标自动关闭该条线路电源及主动报警功能。保证用电安全，避免产生人身伤害；
（11）当漏电监测终端主动报警或监控中心在遥测时发现有报警时，系统自动发出发出语音报警、自动存盘、显示线路方向，并能够以短消息将故障信息转移至指定的手机；
（12）监测数据黑匣子功能，漏电终端自动连续存储20天以上的漏电监测数据；
（13）漏电终端具备显示屏功能，显示内容包括线路编号、实时漏电值、线路是否启用、漏电保护报警；
（14）漏电历史数据包括漏电报警时刻、漏电变化、漏电报警时刻的漏电数据。
供电线路漏电流监测路数 ：8路；
（15）漏电流测量路数 ：8路；
（16）漏电流测量精度 ：误差≤±1%；
（17）监测输入电流：二次电流测量范围：AC0-100mA,当一次电流输入1A时测量精度误差小于等于1%。

与国内外同类产品或同类技术的比较情况：

目前在国内外对城市照明监测管理的手段主要分为以下几种：

1、安装使传统漏电保护开关
存在缺点：使用传统的漏电保护开关，现场施工难度大，需要更改现场接线，漏电保护动作电流调节范围小，需要现场设置、漏电保护后不能主动发现和不能远程复位等问题。

2、使用简单的远程路灯漏电监测终端设备
存在缺点：只有简单的漏电保护功能，不能实现漏电数据记录和分析功能，在无网络的情况下不具备自判断保护功能。

3、在路灯灯杆上安装漏电监测保护器或绝缘电阻监测装置
存在缺点：智能保护到灯杆金属部分的漏电，不能实现对供电线路的漏电保护以及不能实时漏电监测管理，无法实现后台监测管理。
因此本次项目实时的路灯漏电监测终端设备和漏电监测管理平台是专门针对城市照明对漏电管理的特点和要求进行研究，把城市照明漏电监控管理与城市照明照明监控管理打造为一体化的应用管理，集城市照明服务单位十几年的理论和经验的重要创新产品。该平台集多项高新技术于一体，并具有众多的理论突破与创新技术，无论是漏电监测模块和漏电监测平台都是全国最先进的。

At present, the methods of urban lighting monitoring and management at home and abroad are mainly divided into the following types:

1. Install the traditional leakage protection switch
There are shortcomings: using traditional leakage protection switches, on-site construction is difficult, on-site wiring needs to be changed, leakage protection action current adjustment range is small, on-site settings are required, and problems such as inability to actively discover and remote reset after leakage protection are required.

2. Use simple remote street lamp leakage monitoring terminal equipment
There are shortcomings: only a simple leakage protection function, cannot realize leakage data recording and analysis functions, and does not have a self-judgment protection function when there is no network.

3. Install a leakage monitoring protector or insulation resistance monitoring device on the street lamp pole
There are shortcomings: intelligent protection to the leakage of the metal part of the light pole, cannot realize the leakage protection of the power supply line, cannot realize the real-time leakage monitoring and management, and cannot realize the background monitoring and management.

Therefore, the real-time street lamp leakage monitoring terminal equipment and leakage monitoring management platform of this project are specifically designed for the acteristics and requirements of urban lighting for leakage management, and the urban lighting leakage monitoring management and urban lighting monitoring management are built as an integrated application management , An important innovative product that integrates the theory and experience of more than ten years of urban lighting service units. The platform integrates a number of high and new technologies, and has many theoretical breakthroughs and innovative technologies. Both the leakage monitoring module and the leakage monitoring platform are the most advanced in the ry.

经济评价分析：

1、通过城市照明漏电监控管理技术的应用实施，实现城市照明管理工作从人工管理向自动化管理转变，从被动管理向主动服务转变，保障城市照明设施安全运行，通过建立对漏电监测的智能化管理，在城市照明自动化监控管理系统的基础上升级建立城市照明自动化监控管理和漏电监测的一体化管理平台，实现对城市照明设施供电线缆进行实时监测、解决漏电故障发现困难，不能主动报警，不能及时跳闸保护和远程复位亮灯问题。

2、通过对城市照明设施的准确性、实时性的监控，及时、全面地发现每一设备运行中出现的故障，实现真正意义上的值班等待故障、发现故障的工作模式，减少人力成本、车辆投入等维修成本，而且在检修车出发前已经知道了故障的准确地点和基本状态，有目的的检修，不需巡线查找，因而大幅减少缩短了检修响应时间、提高检修效率，保证了设设的完好率，降低了管理成本。系统的实施，使得城市管理者的工作更加规范化、人性化、精细化，极大的提高了管理水平及效益。

3、通过对照明供电线路的各负荷输出线缆精细连续24小时的精准监测，在线路发生故障时能够自动、及时发出报警以及单独切断漏电线路的供电，防止路灯设备带病运行，不影响其它线缆的正常运行，同时能够通过数据还原查看漏电故障发生的过程，为现场检修人员提供精准的数据分析结果，为管理这提供决策的依据。

1. Through the application and implementation of urban lighting leakage monitoring and management technology, realize the transformation of urban lighting management manual management to automated management, passive management to active service, to ensure the safe operation of urban lighting facilities, and to establish intelligent management of leakage monitoring , Upgrade and establish an integrated management platform for urban lighting automation monitoring management and leakage monitoring on the basis of the urban lighting automation monitoring and management system, realizing real-time monitoring of the power supply cables of urban lighting facilities, and solving the difficulty of finding leakage faults, and cannot actively alarm. Timely trip protection and remote reset lighting problems.

2. Through the accurate and real-time monitoring of urban lighting facilities, we can timely and comprehensively discover the faults in the operation of each equipment, and realize the working mode of waiting for faults and discovering faults in the true sense, reducing labor costs and vehicles. Investment and other maintenance costs, and the accurate location and basic status of the fault are known before the inspection vehicle is set off. Purposeful inspections are performed without the need for line inspections, which greatly reduces the maintenance response time, improves the maintenance efficiency, and ensures the design The intact rate reduces the management cost. The implementation of the system makes the work of city managers more standardized, humane, and refined, which greatly improves the management level and benefits.

3. Through precise monitoring of each load output cable of the lighting power supply line for 24 hours, it can automatically and promptly issue an alarm when the line fails and cut off the power supply of the leakage line separately to prevent the street lamp equipment running with diseases and not affect others The normal operation of the cable, and at the same time, the process of leakage faults can be viewed through data restoration, providing accurate data analysis results for on-site maintenance personnel, and providing a basis for decision-making for management.

技术及工艺创新要点：

1、在不改变现有的路灯控制方式基础上，仅通过现场增加漏电模块实现漏电监测；

2、漏电报警、跳闸保护限制等参数能够灵活设置，通过监控中心能够整体下发设置；

3、全过程记录漏电监测数据，实现大数据分析管理；

4、漏电故障主动发现和报警、漏电保护能够远程复位

5、按漏电严重程度进行智能筛查实时漏电数据，历史漏电数据，过程综合比较漏电数据，同时可安装漏电严重程度建立应急预案。

1. On the basis of not changing the existing street lamp control method, the leakage monitoring is realized only by adding a leakage module on site;

2. Parameters such as leakage alarm and trip protection limit can be set flexibly, and the settings can be issued as a whole through the monitoring center;

3. Record leakage monitoring data in the whole process to realize big data analysis and management;

4. Active detection and alarm of leakage faults, leakage protection can be reset remotely

5. Intelligently screen real-time leakage data, historical leakage data, and comprehensive comparison of leakage data in the process according to the severity of leakage. At the same time, the severity of leakage can be installed to establish an emergency plan.

实际运用案例和用户评价意见：

惠州市城市照明路灯漏电监测终端设备采购项目于2020年9月安装并投入使用，实现了对823条供电线路的实时监测、漏电报警以及漏电保护管理。
1）通过项目的实施，对存量的漏电的线路进行给出结论报警，同时给出漏电故障点的线路方向，指导现场维护人员修复漏电。

2）对漏电监测电流的历史漏电的曲线分析，能够实现对监测站点所有监测线缆的漏电状态和漏电数据进行全过程的监测和分析，解决了漏电故障监测困难的难题，同时能够根据漏电历史数分析建立漏电应急预案。

3）通过实施路灯漏电监测项目的实施，对现场存在漏电故障进行排查，知道现场维护人员准确排除、修复漏电故障：
（1）灯杆检修口漏电点故障情况

（2）接线井漏电故障点故障情况

（3）埋地线缆漏电点故障情况

获奖、专利情况：

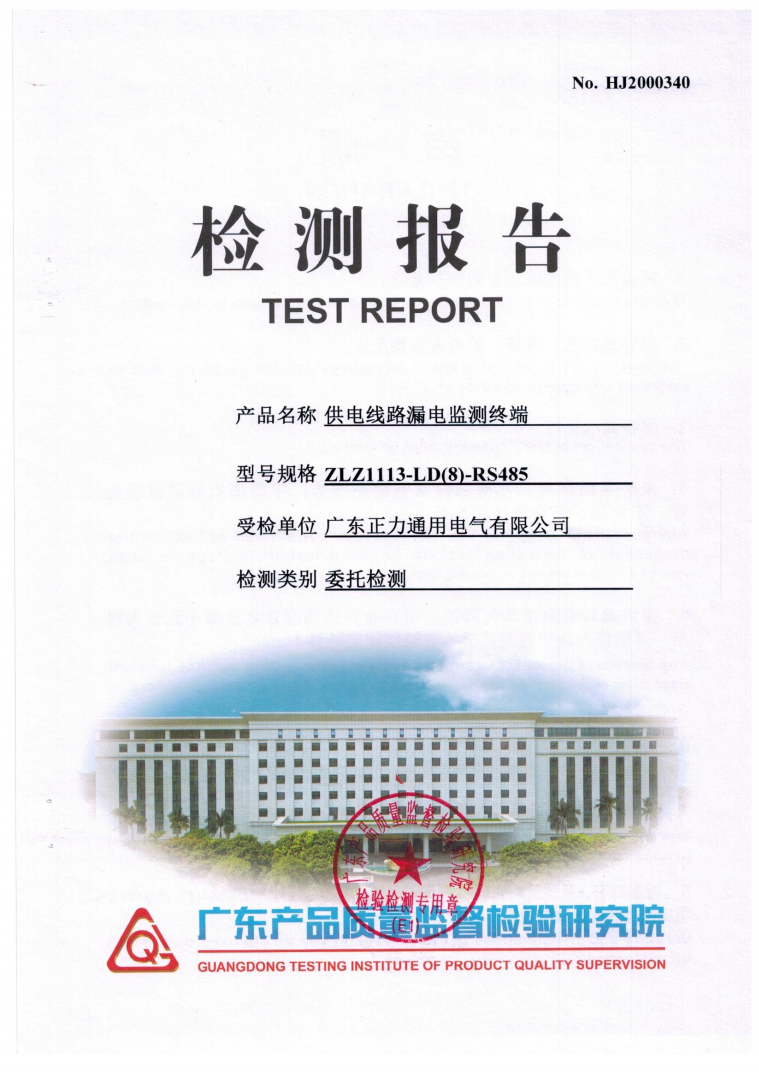

1.路灯漏电监测终端共有18项功能，具备广东省质量监督研究院检验认证。

2、漏电监测管理平台具备计算机软件著作权

申报单位介绍：

广东正力通用电气有限公司成立于2000年11月，注册资金2001万，是一家专业从事路灯控制，集硬件与软件自主研发、制造、销售、服务于一体，生产各类优质照明自动化监控终端，提供云平台、智慧城市照明后台的国家高新技术企业，目前为国家国家低碳照明研究中心、照明智能化监控研究室。由公司全自主研发生产的各项软硬件产品已先后应用于北京市、上海市、广州市、深圳市、等全国400多个城市。我们将秉持“始于用户所需，终于用户满意”的经营理念，让城市的每一个老百姓都能享受到现代城市智慧照明的服务。

Guangdong Zhengli General Electric Co., Ltd. was established in November 2000 with a registered capital of 20.1 million. It is a company specializing in street lamp control, integrating hardware and software independent research and development, manufacturing, sales, and service. It produces all kinds of high-quality lighting automation monitoring terminals. A national high-tech enterprise that provides a cloud platform and smart city lighting backstage. Currently, it is the National Low-Carbon Lighting Research Center and Lighting Intelligent Monitoring Research Laboratory. The software and hardware products independently developed and produced by the company have been used in more than 400 cities across the ry, including Beijing, Shanghai, Guangzhou, Shenzhen and so on. We will uphold the business philosophy of "beginning with the needs of users, and finally satisfying users", so that everyone in the city can enjoy the services of smart lighting in modern cities.
